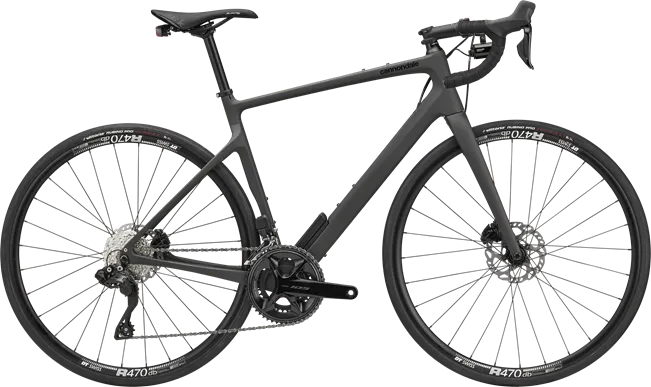

Name: 2023 Synapse Carbon 2 LE
SKU: 711317

Product Details

＋

Road Reimagined

Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.

Where it thrives

The open road, up & down hills, rough pavement

What it's built for

Comfort, handling, going long

Highlights

Lightweight Synapse Carbon frameset / SmartSense system with front and rear lights
Shimano 105 Di2 12-speed group w/ hydraulic disc brakes
DT Swiss R470 wheels

Specs

Details

Platform
Model Name
Synapse Carbon 2 LE
Model Code
C12252U

Frameset

Frame
Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork
Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Headset
Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"

Drivetrain

Rear Derailleur
Shimano 105 Di2 7150
Front Derailleur
Shimano 105 Di2 7150, braze-on
Shifters
Shimano 105 Di2 7170, hydraulic disc, 12-speed
Chain
Shimano 105 7100, 12-speed
Crank
Shimano 105 7100, BSA, 50/34
Rear Cogs
Shimano 105 7100, 12-speed, 11-34
Bottom Bracket
Shimano 105 R7100, BSA

Brakes

Brakes
Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
Brake Levers
Shimano 105 Di2 7170 hydraulic disc

Wheels

Rims
DT Swiss R470 db, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro Reflective, 700 x 30c
Tire Size
30
Wheel Size
700c
Hubs
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock

Components

Handlebar
Cannondale 3, 6061 Alloy, Compact
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Grips
Fabric Knurl Bar Tape, 3.5mm
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3 SmartSense, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61)
